3-Way Valve-Line Changer
3-Way Valve-Line Changer
Regular price
Rs. 3,699.00
Regular price
Sale price
Rs. 3,699.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
3-Way Valve-Line Changer-Automat

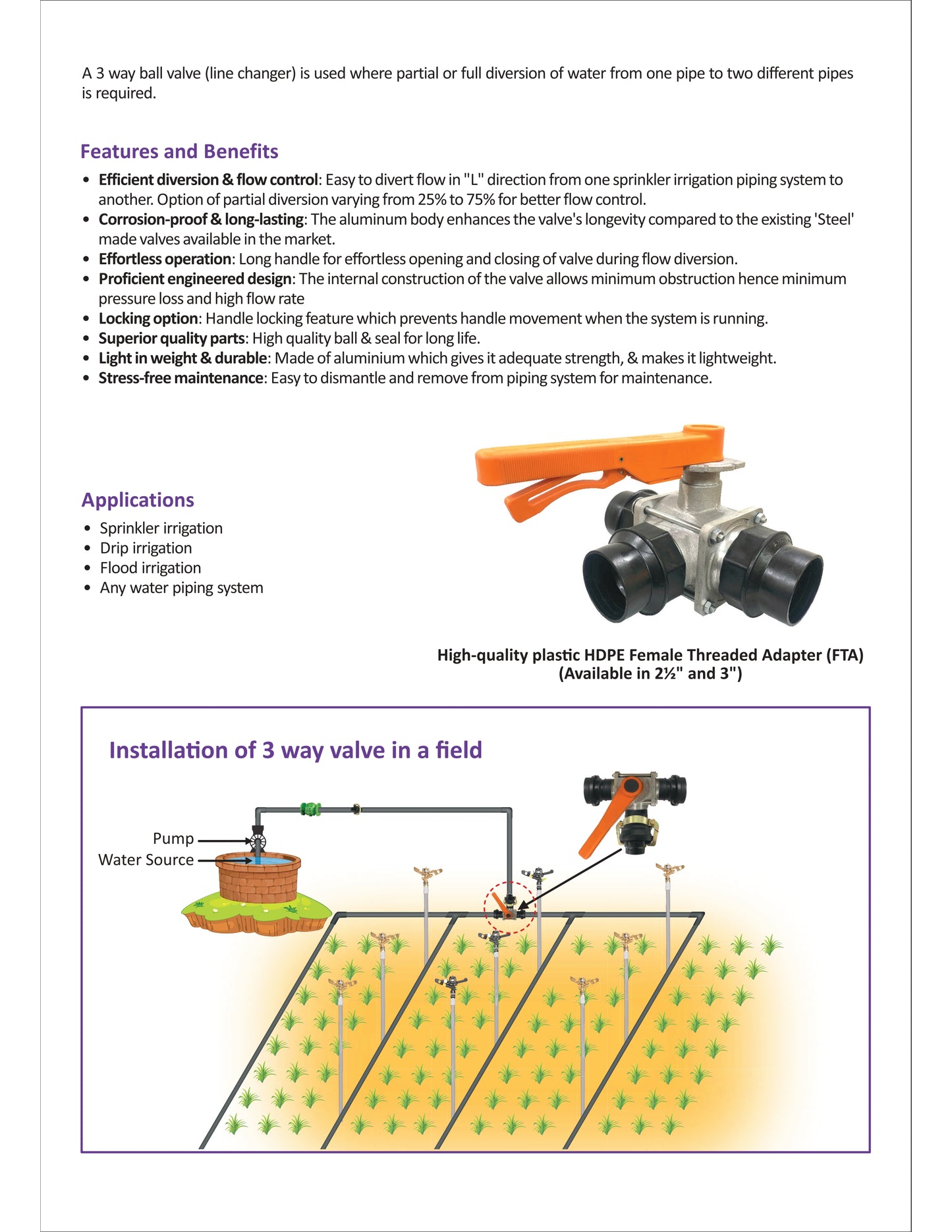

Easily divert flow of water through pipelines with the 3 way Ball Valve (Line Changer). Suitable for piping systems that require partial or full diversion of water from one pipe or two different pipes.
Features and Benefits
Efficient diversion & flow control: East to divert flow in "L" direction from one sprinkler irrigation piping system to another. Option of partial diversion varying from 25% to 75% for better flow control.
Corrosion-proof & long-lasting: The aluminium body enhances the valve's longevity compared to the existing 'Steel' made valves available in the market.
Effortless operation: Long handle for effortless opening and closing of valve during flow diversion.
Proficient engineered design: The internal construction of the valve allows minimum obstruction hence minimum pressure loss and high flow rate.
Locking option: Handle locking feature which prevents handle movement when the system is running.
Superior quality parts: High quality ball & seal for long life.
Light in weight & durable: Made of aluminium which gives it adequate strength, & makes it lightweight.
Stress-free maintenance: Easy to dismantle and remove from piping system for maintenance.
Applications
Sprinkler irrigation
Drip irrigation
Flood irrigation
Any water piping system

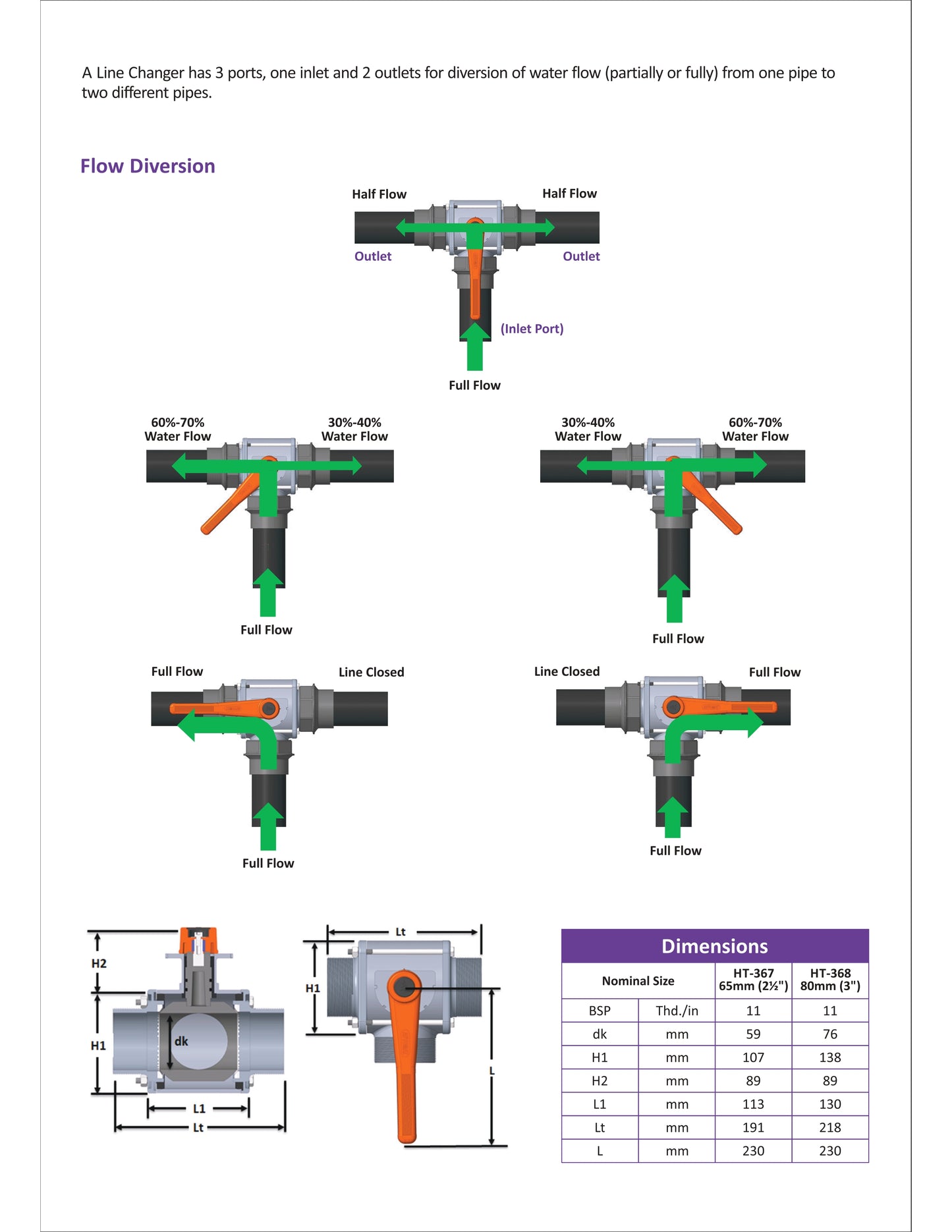

| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Normal Size | HT-367 65mm(2½”) | HT-368 80mm(3") | |||||
| BSP | Thd./in | 11 | 11 | ||||
| dk | mm | 59 | 76 | ||||
| H1 | mm | 107 | 138 | ||||
| H2 | mm | 89 | 89 | ||||
| L1 | mm | 113 | 130 | ||||
| Lt | mm | 191 | 218 | ||||
| L | mm | 230 | 230 | ||||
